CD99D10BQ 1GSPS, 14 bit, 3.3V CMOS direct digital frequency synthesizer-ChisynV Microelectronics (Beijing) Co., Ltd.

CD99D10 is a direct digital frequency synthesizer (DDS) with a built-in 14 bit DAC, supporting up to 1 GSPS sampling rate and generating 400 MHz sine waveforms. Users can control the DDS output signal through internal frequency, phase, and amplitude control words.
DDS can perform fast frequency hopping and achieve a tuning resolution of 0.23 Hz using a 32-bit accumulator at a sampling rate of 1 GSPS. This DDS also achieves fast phase and amplitude switching function. Users can program the internal control registers of CD99D10 through the serial I/O port to achieve control of CD99D10.
The CD99D10 integrates static RAM and can support multiple combinations of frequency, phase, and/or amplitude modulation.
CD99D10 also supports user-defined CNC digital slope working modes. In this mode, frequency, phase, or amplitude vary linearly with time. The high-speed parallel data input port built-in in CD99D10 can achieve direct frequency, phase, amplitude, or polarization modulation to support higher-level modulation functions.

Parameters

Resolution (Bits):14
Main clock (MHz):1000
Number of communications:1
No spurious dynamic range (dB):80
Third order intermodulation (dB):80
Power consumption (MW):560

Features

Power supply:1.8 V and 3.3 V
Internal system clock:1 GSPS (Up to400 MHz analog output)
within Set1 GSPS 14 bit DAC
Frequency resolution:0.23Hz or above
Output phase noise:≤-125 dBc/Hz (1 kHz offset, 400 MHz carrier)
narrowbandSFDR:>80 dB
Serial input/Output (I/0) control
Automatic linear or any frequency/Phase/amplitude scanning function
backSinc correction filter
8 types of frequency and phase offset forms
Internal oscillator, supporting single crystal operation
software/Power saving function of hardware control
integration1024 words × 32 RAM
Parallel data path interface
PLL REFCLK Multiplier
Phase modulation function
AM function
Multi chip synchronization

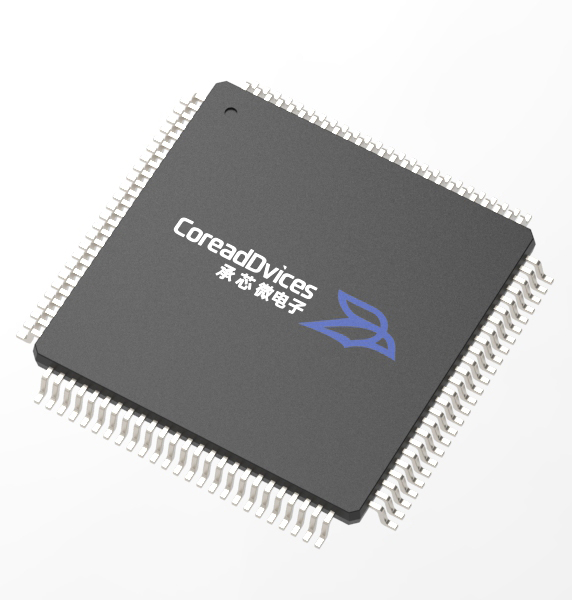

Packaging:100 pin TQFP_ EP

Application

Programmable clock generator
Radar and scanning systemFM linear frequency modulation source
Testing and measurement equipment
Audio optic device driver
Polarization modulator
Fast frequency modulation

Parameters

MALL MALL

Part Number

Package

Resolution (bits)

Channels

Reference Clock Frequency (MHz)

Spurious-Free Dynamic Range (SFDR) (dB)

Third-Order Intermodulation (dB)

Power Consumption (mW)

Temp Range(°C)

Open

CD99D10BQ

CD99D10 是一款内置 14 位 DAC 的直接数字频率合成器（DDS），支持高达 1 GSPS 采样速率，可生成 400 MHz 正弦波形。用户可通过内部频率、相位与振幅控制字来控制 DDS 输出信号。DDS 能够进行快速跳频，在 1 GSPS 采样速率下，利用 32 位累加器能达到 0.23 Hz 的调谐分辨率。这款 DDS 还实现了快速相位与幅度切换功能。用户可通过串行 I/O 端口对CD99D10 的内部控制寄存器进行编程，以实现对 CD99D10 的控制。CD99D10 集成了静态 RAM

Datasheet

PackageTQFP-100

Resolution (bits) 14

Channels 1000

Reference Clock Frequency (MHz) 1

Spurious-Free Dynamic Range (SFDR) (dB) 80

Third-Order Intermodulation (dB) 80

Power Consumption (mW) --

Temp Range(°C) -40 to 85

Open
