CD97D39
High Speed DACs
14 bit, 2.5 GSPS, RF analog-to-digital converte
Active | Production cycle:
Description
The CD97D39 is a 14-bit, 2.5 GSPS high performance RF digital to-analog converter (DAC)capable of synthesizing wideband signals from dc up to 3.0 GHz. Its DAC core features a quad switch architecture that provides exceptionally low distortion performance with an industry-leading direct RF synthesis capability. This feature enables multicarrier generation up to the Nyquist frequency in baseband mode as well as second and third Nyquist zones in mix mode. The output current can be programmed over the 8.66 mA to 31.66 mA range. The inclusion of on-chip controllers simplifies system integration. A dual-port, source synchronous, LVDS interface simplifies the digital interface with existing FGPA/ASIC technology. On-chip controllers are used to manage external and internal clock domain variations over temperature to ensure

reliable data transfer from the host to the DAC core. Multichip synchronization is possible with an on-chip synchronization controller. A serial peripheral interface (SPI) is used for deviceconfiguration as well as readback of status registers. The CD97D39 is manufactured on a 0.18μm CMOS process and operates from 1.8 V and 3.3 V supplies. It is supplied in a 160-ball chip scale ball grid array for reduced package parasitics.

  • Resolution(Bits):14
  • Channel:1
  • Sample rate(Msps):2500
  • Interface Type:LVDS
  • SFDR(dB): 70
  • Third-order intermodulation(dB):87
  • ACLR(dB):82
  • Noise spectral density(dB/hz):-
  • Power consumption:950 mW
  • Supply Voltage:1.8 V / 3.3 V


  • Direct RF synthesis at 2.5 GSPS update rate

    DC to 1.25 GHz in baseband mode

    1.25 GHz to 3.0 GHz in mix mode

  • Industry leading single/multicarrier IF or RF synthesis

    fOUT = 350 MHz, ACLR =80 dBc

    fOUT = 950 MHz, ACLR = 78 dBc

    fOUT = 2100 MHz, ACLR = 69 dBc

  • Dual-port LVDS data interface

    Up to 1.25 GSPS operation

    Source synchronous DDR clocking

  • Multichip synchronization capability

  • Programmable output current: 8.7 mA to 31.7 mA

  • Low power: 1.16 W at 2.5 GSPS


  • Broadband communications systems

  • Military broadband electronic system

  • Instruments and automatic test equipment

  • Radar and aviation equipment

  • CMTS system equipment


Parameters

Part Number
Package
Resolution (bits)
Channels
Update Rate (MSPS)
Spurious-Free Dynamic Range (SFDR) (dB)
Third-Order Intermodulation (dB)
Adjacent Channel Leakage Ratio (dB)
Noise Spectral Density (dBc/hz)
Power Consumption (mW)
Temp Range(°C)
Open
CD97D39AG
CD97D39是采用 CMOS 工艺制造的半导体集成电路。该产品为分段式电流舵结构,电路内部包含 LVDS 接收器、时序同步电路、带隙基准源、SPI 接口电路、时钟接收电路和 14 位 DAC 核等电路。本产品是高性能高频数模转换器,能提供高达2500MHz 的采样率,并可以支撑 Nyquist 频率内的多载波信号产生;具有 SPI 接口,能够对众多的内部参量进行编程设置,可回读状态寄存器;采用 LVDS 接口获得高采样速率;输出电流可以在 8.66mA 到 31.66mA 范围内编程设置。该产品封装采用
Datasheet

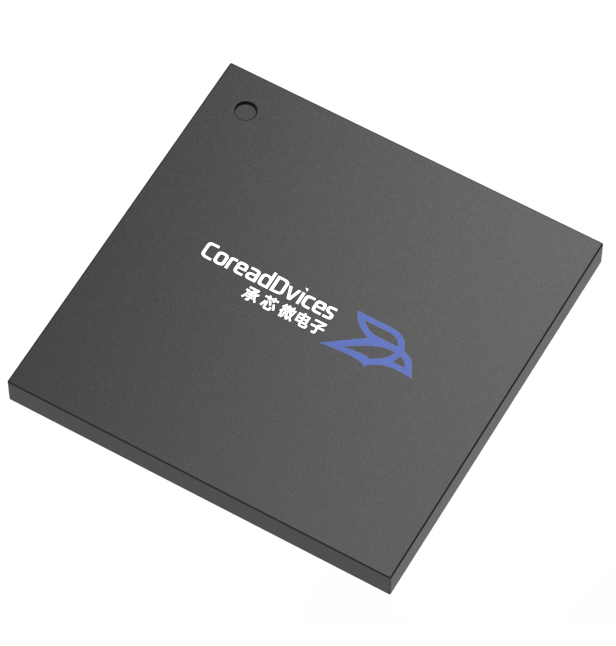

PackagePBGA-160
Resolution (bits) 14
Channels 2500
Update Rate (MSPS) 1
Spurious-Free Dynamic Range (SFDR) (dB) 70
Third-Order Intermodulation (dB) 87
Adjacent Channel Leakage Ratio (dB) 82
Noise Spectral Density (dBc/hz) --
Power Consumption (mW) 950
Temp Range(°C) -40 to 85
Open
CD97D39BG
CD97D39是采用 CMOS 工艺制造的半导体集成电路。该产品为分段式电流舵结构,电路内部包含 LVDS 接收器、时序同步电路、带隙基准源、SPI 接口电路、时钟接收电路和 14 位 DAC 核等电路。本产品是高性能高频数模转换器,能提供高达2500MHz 的采样率,并可以支撑 Nyquist 频率内的多载波信号产生;具有 SPI 接口,能够对众多的内部参量进行编程设置,可回读状态寄存器;采用 LVDS 接口获得高采样速率;输出电流可以在 8.66mA 到 31.66mA 范围内编程设置。该产品封装采用
Datasheet
PackagePBGA-160
Resolution (bits) 14
Channels 2500
Update Rate (MSPS) 1
Spurious-Free Dynamic Range (SFDR) (dB) 70
Third-Order Intermodulation (dB) 87
Adjacent Channel Leakage Ratio (dB) 82
Noise Spectral Density (dBc/hz) --
Power Consumption (mW) 950
Temp Range(°C) -40 to 85
Open
