CDV724
Low Noise OpAmps
Low cost, low noise, rail to rail output, quad channel operational amplifier
Active
| Production cycle：
Description
The CDV72X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio,providing an excellent bandwidth (10MHz)and slew rate of 7V/us. The op-amps are unity gain stable and feature an ultra-low input bias
current. The devices are ideal for sensor interfaces, active filters and portable applications.
The CDV721S, CDV722S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The CDV72X families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Parameters
Features
Application
-
Channel: 4
- Input Voltage Noise Density(@1kHz):9.5
- Gain-Bandwidth Product(Typ)(MHz):10
- Slew Rate(V/μs):7
- Quiescent Current/Amplifier(Typ)(μA):1150
- Supply(Min)(V):2.5
- Supply(Max)(V):5.5
- Rail to rail input/output:Y/Y
- Offset Voltage(Max@25℃)(mV):2.5
- Input Offset Voltage Average Drift(μV/℃):2.6
- Input Bias Current(pA):1
- Open-Loop Voltage Gain(Typ)(dB):96
- Common-Mode Rejection Ratio(Typ)(dB):85
- HIGH GAIN BANDWIDTH:10MHz
- RAIL-TO-RAIL INPUT AND OUTPUT 0.9mV Typical VOS
- INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SHUTDOWN: CBMV721S/CBMV722S
- SPECIFIED UP TO +125°C
- MicroSIZE PACKAGES: SOT23-5, SOT23-6
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Parameters
Part Number
Package
Channel
Supply Voltage (Min)(V)
Supply Voltage (Max) (V)
Offset Voltage (Max@25°C) (mV)
Iq/ Amp Typ (μA)
IB Typ(pA)
Rail-to-Rail I/O
ENOISE Typ@1kHz (nV/√Hz)
TC of Vos Typ(μV/°C)
GBW Typ(MHz)
Slew Rate Typ (V/μs)
Aol Typ(dB)
CMRR Typ(dB)
Temp Range(°C)
CDV724AS14
Datasheet
CDV72X系列产品提供低压操作、轨对轨输入和输出，以及卓越的速度/功耗比，提供出色的带宽（10MHz）和7V/us的转换速率。运算放大器单位增益稳定，具有超低输入偏置电流。该设备是传感器接口、有源滤波器和便携式应用的理想选择。CDV721S、CDV722S包括关机模式。在逻辑控制下，放大器可以从正常工作切换到小于1uA的备用电流。CDV72x系列运算放大器在2.5V至5.5V单电源或双电源下的全温度范围为−40℃至+125℃。
Datasheet
PackageSOP-14
Channel
4
Supply Voltage (Min)(V)
3.5
Supply Voltage (Max) (V)
2.4
Offset Voltage (Max@25°C) (mV)
1
Iq/ Amp Typ (μA)
IB Typ(pA)
Y/Y
Rail-to-Rail I/O
2.1
ENOISE Typ@1kHz (nV/√Hz)
5.5
TC of Vos Typ(μV/°C)
10
GBW Typ(MHz)
9
Slew Rate Typ (V/μs)
1000
Aol Typ(dB)
CMRR Typ(dB)
9.5
Temp Range(°C)
-40 to 125
CDV724ATS14
Datasheet
CDV72X系列产品提供低压操作、轨对轨输入和输出，以及卓越的速度/功耗比，提供出色的带宽（10MHz）和7V/us的转换速率。运算放大器单位增益稳定，具有超低输入偏置电流。该设备是传感器接口、有源滤波器和便携式应用的理想选择。CDV721S、CDV722S包括关机模式。在逻辑控制下，放大器可以从正常工作切换到小于1uA的备用电流。CDV72x系列运算放大器在2.5V至5.5V单电源或双电源下的全温度范围为−40℃至+125℃。
Datasheet

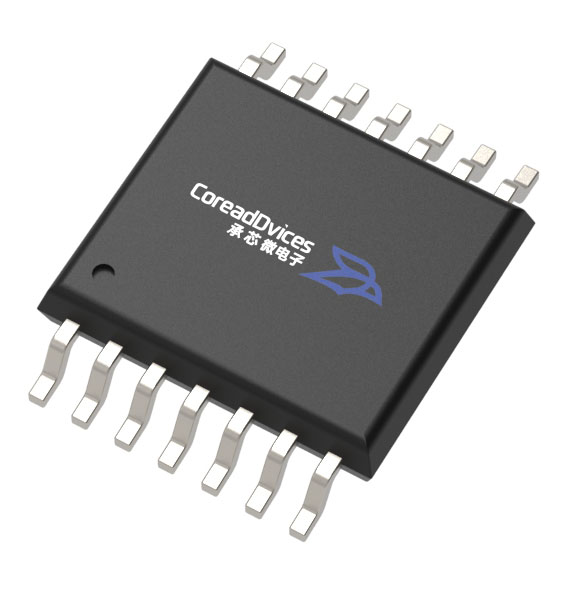

PackageTSSOP-14
Channel
4
Supply Voltage (Min)(V)
3.5
Supply Voltage (Max) (V)
2.4
Offset Voltage (Max@25°C) (mV)
1
Iq/ Amp Typ (μA)
IB Typ(pA)
Y/Y
Rail-to-Rail I/O
2.1
ENOISE Typ@1kHz (nV/√Hz)
5.5
TC of Vos Typ(μV/°C)
10
GBW Typ(MHz)
9
Slew Rate Typ (V/μs)
1000
Aol Typ(dB)
CMRR Typ(dB)
9.5
Temp Range(°C)
-40 to 125
