They are specified over the extended industrial temperature range (-40℃ to +125℃). The operating range is from 1.4V to 5.5V.
The CD8045 single is available in Green SC70-5 and SOT23-5 packages.
The CD8046 Dual is available in Green SOP-8 and MSOP-8 packages.

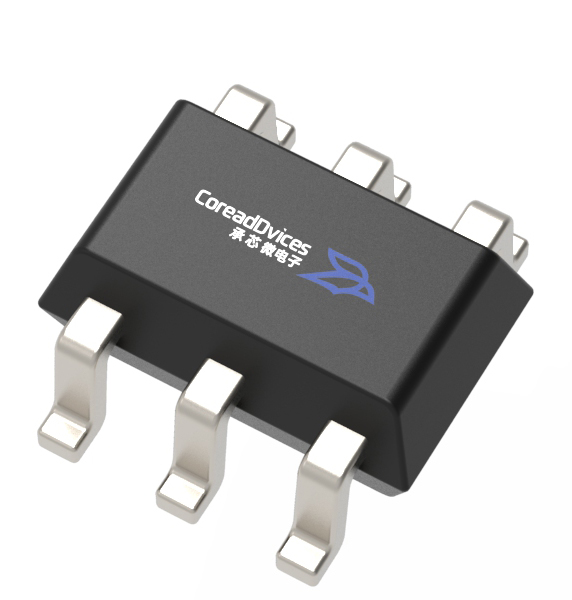

The CD8047 single is available in Green SC70-6 and SOT23-6 packages.
-
Channel: 1
- Quiescent Current/Amplifier(Typ)(μA):0.6
- Supply(Min)(V):1.4
- Supply(Max)(V):5.5
- Gain-Bandwidth Product(Typ)(MHz):100
- Slew Rate(V/ms):40
- Input Voltage Noise Density(@1kHz)(nV/√Hz):--
- Offset Voltage(Max@25℃)(μV):3
- Input Offset Voltage Average Drift(μV/℃):2.5
- Input Bias Current(pA):1
- Open-Loop Voltage Gain(Typ)(dB):84
- Common-Mode Rejection Ratio(Typ)(dB):77
- Rail to rail input/output:Y
-
Single-Supply Operation from +1.4V ~ +5.5V
-
Rail-to-Rail Input / Output
-
Gain-Bandwidth Product: 100KHz (Typ)
-
Low Input Bias Current: 1pA (Typ)
-
Low Offset Voltage: 3mV (Max)
-
stable for Gains≥10
-
Quiescent Current: 600nA per Amplifier (Typ)
-
Chip Select with CD8047H( active High ) and CD8047L(active Low )
-
Operating Temperature: -40°C ~ +125°C
-
Embedded RF Anti-EMI Filter
-
Small Package:
CD8045 Available in SOT23-5 and SC70-5 Packages
CD8046 Available in SOP-8 and MSOP-8 Packages
CD8047H Available in SOT23-6 and SC70-6 Packages
CD8047L Available in SOT23-6 and SC70-6 Packages
-
ASIC Input or Output Amplifier
-
Sensor Interface
-
Medical Communication
-
Smoke Detectors
-
Audio Output
-
Piezoelectric Transducer Amplifier
-
Medical Instrumentation
-
Portable Systems
