The CD79AD60G of 18-bit A/D Converter (Analog-to-Digital Converter) with sampling of 5MSPS is successive-approximation, it includes A/D core of low power consumption and 18-bit high speed, clock generation circuit of interior switch, error correction circuit and universal serial bus(USB).At the rising edge of conversion control signal(CNV),The voltage difference between the device sample input port of IN+ and IN- is provided backward voltage signal which operating voltage range
is 0V to VREF. All the conversion results of the device output through serial high speed LVDSinterface. A/D converter available in QFN32 packages, recommended operating temperature range is from -40℃~ to 85℃.
- Resolution(Bits): 18
- Channel:1
- Sample rate(Ksps):5000
- Interface Type:Serial LVDS
- SNR: 95.5 dBFS
- Power Consumption:64.5 mW
-
Structure Type:SAR
- Supply:±5 V
-
Sample rate: 5MSPS
-
18 Bit Resolution, lossless code
-
Characteristic of AC and DC(Type):
Dynamic Range: 96.5dB
SNR: 95.5dB
-
Spurious free dynamic range（SFDR）：115dB
-
Total harmonic distortion: -113dB
-
Linearity Errors: ±2.0LSB(MAX)
-
Differential error: ±0.99LSB(MAX)
-
Low power consumption: 64.5mW
-
Supply voltage: 1.8V/5.0V
-
Range of differential analog input:
Allow any input range of ±VREF（0V to+VREF）, MAX(VREF) = 5V, 4.096V~5V(Type)(Any range of input)
-
SAR structure: No pipeline delay
-
Interface of digital logic: 1.8V
-
Interface of serial LVDS
-
Range of operating temperature: -40℃ to +85℃
-

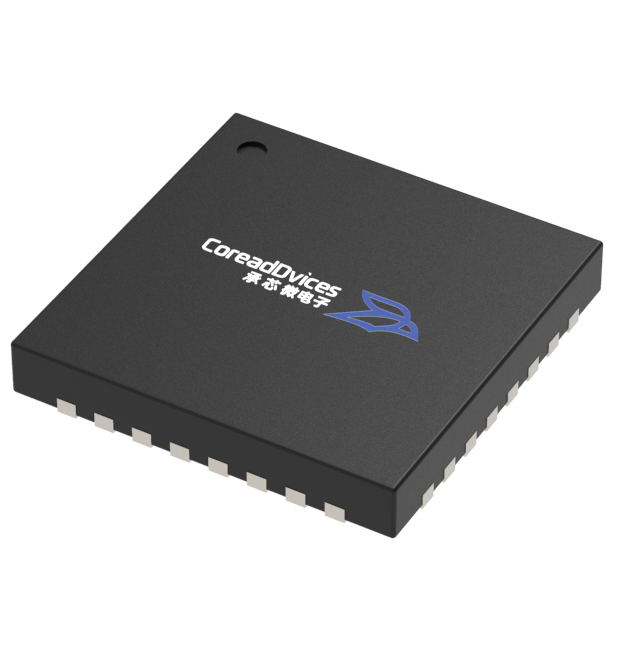

32 pin, QFN32 plastic packaging
-
system of digital imaging
-
digital X-ray machine
-
Medical digital tomography
-
Infrared camera
-
Gradient control of nuclear magnetic resonance examination（MRI）
-
High precision data acquisition
-
spectral analysis
