CD8224
General Purpose OpAmps
Low cost, low power consumption, low noise, quad channel operational amplifier
Preview
| Production cycle：
Description
The CD8221, CD8222, CD8224, CD8221S, CD8222S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (500kHz) and slew rate of 0.18V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications.
The CD8221S, CD8222S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The CD8221, CD8222, CD8224, CD8221S, CD8222S families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
The CD8221S, CD8222S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The CD8221, CD8222, CD8224, CD8221S, CD8222S families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Parameters
Features
Application
-
Channel: 4
- Offset Voltage(Max@25℃)(mV) :3.5
- Quiescent Current/Amplifier(Typ)(μA):18
- Supply(Min)(V):2.5
- Supply(Max)(V):5.5
- Gain-Bandwidth Product(Typ)(MHz):0.5
- Slew Rate(V/ms):180
- Rail to rail input/output :In,Out
- Input Offset Voltage Average Drift(μV/℃):2.9
- Input Voltage Noise Density(@1kHz)(nV/√Hz):77
- Input Bias Current(pA):1
- Open-Loop Voltage Gain(Typ)(dB):110
- Common-Mode Rejection Ratio(Typ)(dB):90
-
Gain Bandwidth : 500kHz
-
Rail-To-Rail Input And Output
-
0.8mV Typical Vos
-
Input Voltage Range : -0.1V to +5.6V with
-
Vs = 5.5V
-
Supply Range : +2.5V to +5.5V
-
Shutdown : CD8221S/CD8222S
-
Specified Up To +125°C
-
Micro Size Packages : SOT23-5, SOT23-6
-
Sensors
-
Photo diode Amplification
-
Active Filters
-
Test Equipment
-
Driving A/D Converters
Parameters
Part Number
Package
Channel
Supply Voltage (Min)(V)
Supply Voltage (Max) (V)
Offset Voltage (Max@25°C) (mV)
Iq/ Amp Typ (μA)
IB Typ(pA)
Rail-to-Rail I/O
ENOISE Typ@1kHz (nV/√Hz)
TC of Vos Typ(μV/°C)
GBW Typ(MHz)
Slew Rate Typ (V/μs)
Aol Typ(dB)
CMRR Typ(dB)
Additional Feature
Temp Range(°C)
CD8224AS14
Datasheet
CD8221、CD8222、CD8224、CD8221S、CD8222S系列产品提供低电压运行、轨对轨输入和输出，以及卓越的速度/功耗比，提供出色的带宽（500kHz）和0.18V/us的转换率。运算放大器单位增益稳定，具有超低输入偏置电流。
Datasheet

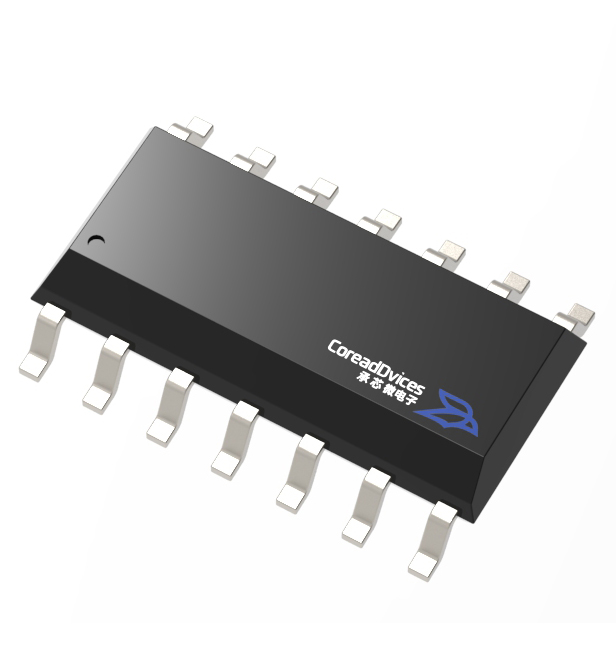

PackageSOP-14
Channel
4
Supply Voltage (Min)(V)
3.5
Supply Voltage (Max) (V)
2.9
Offset Voltage (Max@25°C) (mV)
1
Iq/ Amp Typ (μA)
IB Typ(pA)
In,Out
Rail-to-Rail I/O
2.5
ENOISE Typ@1kHz (nV/√Hz)
5.5
TC of Vos Typ(μV/°C)
0.5
GBW Typ(MHz)
180
Slew Rate Typ (V/μs)
26
Aol Typ(dB)
CMRR Typ(dB)
30
Additional Feature
110
Temp Range(°C)
-40 to 125
CD8224ATS14
Datasheet
CD8221、CD8222、CD8224、CD8221S、CD8222S系列产品提供低电压运行、轨对轨输入和输出，以及卓越的速度/功耗比，提供出色的带宽（500kHz）和0.18V/us的转换率。运算放大器单位增益稳定，具有超低输入偏置电流。
Datasheet
PackageTSSOP-14
Channel
4
Supply Voltage (Min)(V)
3.5
Supply Voltage (Max) (V)
2.9
Offset Voltage (Max@25°C) (mV)
1
Iq/ Amp Typ (μA)
IB Typ(pA)
In,Out
Rail-to-Rail I/O
2.5
ENOISE Typ@1kHz (nV/√Hz)
5.5
TC of Vos Typ(μV/°C)
0.5
GBW Typ(MHz)
180
Slew Rate Typ (V/μs)
26
Aol Typ(dB)
CMRR Typ(dB)
30
Additional Feature
110
Temp Range(°C)
-40 to 125
