CDG707 CMOS, 2.5 Ω, Low-Voltage, Differential, 8-Channel Multiplexer-ChisynV Microelectronics (Beijing) Co., Ltd.

CDG707 is a low-voltage CMOS analog multiplexer with 8 built-in differential channels. It switches one of the 8 differential inputs to the common differential output according to the address determined by the 3-bit binary address lines A0, A1 and A2. The device provides an EN input to enable or disable the device. When disabled, all channels are turned off.

Parameters

Channel Configuration:（8 : 1）×2
Supply(min) (V):1.8
Supply(max) (V):5.5
Dual power supply voltage (typ) (V): ± 2.5
On ResistanceRon(typ)(Ohms):2.5
Flatness of on resistance(typ)(Ohms):0.5
Leakage switch(typ)(pA):10
Channel Isolation(dB):-80
GAIN BANDWIDTH PRODUCT(typ)(MHz):36
Interface:Parallel

Features

1.8V to 5.5V single supply
±2.5V dual supply
2.5Ω on resistance
0.5Ω on resistance flatness
100 pA leakage currents
40 ns switching times
Single 16-to-1 multiplexer CBMG706
Differential 8-to-1 multiplexer CBMG707
28-lead TSSOP package
Low power consumption
TTL-/CMOS-compatible inputs

Application

Data acquisition systems
Communication systems
Relay replacement
Audio and video switching
Battery-powered systems

Parameters

MALL MALL

Part Number

Package

Device Configs

Power Supply
Voltage-Single(min)(V)

Power Supply
Voltage-Single(max) (V)

Power Supply
Voltage-Dual(typ) (V)

Switch Ron(typ)(Ohms)

Switch Ron
Flatness(typ)(Ohms)

Leakage Switch
ON(typ)(pA)

Off Isolation(dB)

BW-3dB(typ)(MHz)

Interface

Temp Range(°C)

Open

CDG707ATS28

CDG707是一款低压CMOS模拟多路复用器，内置8个差分通道。它根据3位二进制地址线A0、A1和A2所确定的地址，将8路差分输入之一切换至公共差分输出。该器件提供EN输入，用来使能或禁用器件。禁用时，所有通道均关断。

Datasheet

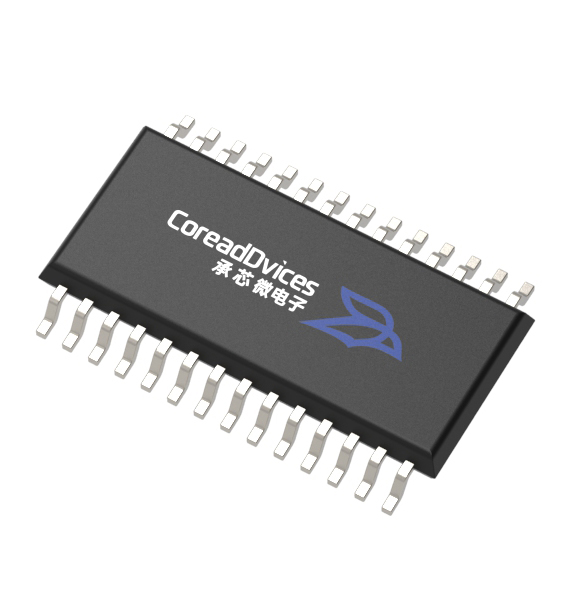

PackageTSSOP-28

Device Configs （8 : 1）×2

Power Supply
Voltage-Single(min)(V) 1.8

Power Supply
Voltage-Single(max) (V) 5.5

Power Supply
Voltage-Dual(typ) (V) ±2.5

Switch Ron(typ)(Ohms) 2.5

Switch Ron
Flatness(typ)(Ohms) 0.5

Leakage Switch
ON(typ)(pA) 10

Off Isolation(dB) -80

BW-3dB(typ)(MHz) 36

Interface Parallel

Temp Range(°C) -40 to 85

Open
