The CD94AD67 is a 16-bit, monolithic, IF sampling analog-to-digital converter (ADC). It is optimized for high performance over wide bandwidths and ease of use. The product operates at a 250 MSPS conversion rate and is designed for wireless receivers, instrumentation, and test equipment that require a high dynamic range. The ADC requires 1.8 V and 3.3 V power supplies and a low voltage differential input clock for full performance operation. No external reference or driver components are required for many applications. Data outputs are LVDS compatible (ANSI-644 compatible) and include the means to reduce the overall current needed for short trace distances. A data clock output (DCO) for capturing data on the output is provided for signaling a new output bit. The internal power-down feature supported via the SPI typically consumes less than 5 mW when disabled. Optional features allow users to implement various selectable operating conditions, including input range, data format select, and output data test patterns.The CD94AD67 is available in a Pb-free, 72-lead, QFN specified over the −40 °C to +85°C industrial temperature range.
- Resolution(Bits): 16
- Channel:1
- Interface Type:: Serial Port Control
- Sample rate(Msps): 250
- Input Type: Differential
- Structure Type: Pipeline
- Analog Supply Voltage: 1.8 V
- Digital Supply Voltage: 1.8 V
- SNR: 75 dB
- Operationing temperature range -40 ℃~+85 ℃
-
Resolution: 16 bits
-
Power supply voltage: 3.3V/1.8V
-
Sampling rate: 250MSPS(Max)
-
SNR: 75dBFS(170 MHz @ 250 MSPS)
-
SFDR: 85dBc(170 MHz @ 250 MSPS)
-
60 fs rms jitter
-
DNL=±0.5LSB(Typ)
-
INL=±3.5LSB(Typ)
-
Differential analog input range≤2.5VPP
-
SPI Function
-
DDR LVDS output(ANSI-644 compatible)
-
Built-in clock with stable duty cycle and clock output
-

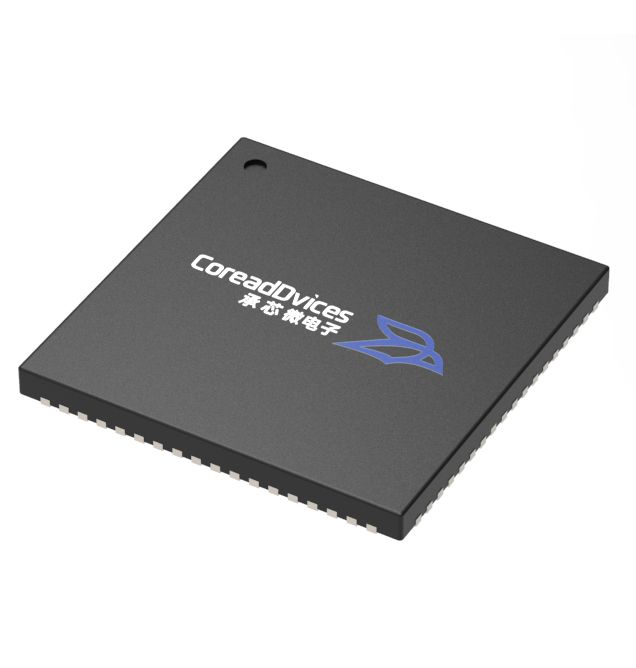

Packaging type: QFN72
-
AD9467-250 P2P Compatible
-
Communication
-
Receiver
-
Base station
-
Spectral analysis
-
Broadband wireless
-
Radar
-
Infrared imaging
-
Power amplifier linearization
-
Image processing
